XT - Extreme Side Rails | Cargo Slide

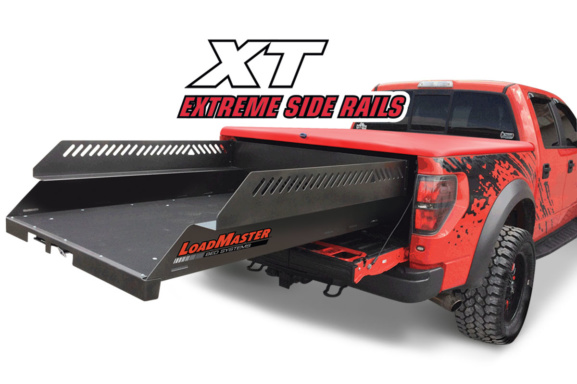

Red ford raptor with a loadmaster xt cargo slide with high side railing

EXTREME SIDE RAILS
CARGO SLIDE

The Loadmaster XT Extreme Side Rails cargo slide features high side rails with multiple locations for ties to secure your cargo.

XT – Extreme Side Rails Features:

• Bed deep, water jet cut, powder coated
• Multiple tie down locations
• Light weight aluminum, formed over the wheel wells

XT Specification Chart

Vehicle	Description	Part #	Dimensions	Weight Capacity (evenly distributed)
Full Size 8' Long Bed	Full Extension (FE)	10-9648-FE	96"L x 48"W	1,000 lbs.
	FE with Xtreme side Rails	10-9648-FE-XT	96"L x 48"W	1,000 lbs.
	Full Extension (FE)	20-9648-FE	96"L x 48"W	2,000 lbs.
	FE with Xtreme side Rails	20-9648-FE-XT	96"L x 48"W	2,000 lbs.
Full Size 6.5' Short Bed	Full Extension (FE)	10-7548-FE	75"L x 48"W	1,000 lbs.
	FE with Xtreme side Rails	10-7548-FE-XT	75"L x 48"W	1,000 lbs.
	Full Extension (FE)	20-7548-FE	75"L x 48"W	2,000 lbs.
	FE with Xtreme side Rails	20-7548-FE-XT	75"L x 48"W	2,000 lbs.
Full Size Super Duty 6'9" Short Bed	Full Extension (FE)	10-8048-FE	80"L x 48"W	1,000 lbs.
	FE with Xtreme side Rails	10-8048-FE-XT	80"L x 48"W	1,000 lbs.
	Full Extension (FE)	20-8048-FE	80"L x 48"W	2,000 lbs.
	FE with Xtreme side Rails	20-8048-FE-XT	80"L x 48"W	2,000 lbs.
Full Size 5.5' & 5.8' Short Bed	Full Extension (FE)	10-6548-FE	65"L x 48"W	1,000 lbs.
	FE with Xtreme side Rails	10-6548-FE-XT	65"L x 48"W	1,000 lbs.
	Full Extension (FE)	20-6548-FE	65"L x 48"W	2,000 lbs.
	FE with Xtreme side Rails	20-6548-FE-XT	65"L x 48"W	2,000 lbs.
2015-c F150 5.5 & Tundra Crew Max	Full Extension (FE)	10-6348-FE	63"L x 48"W	1,000 lbs.
	FE with Xtreme side Rails	10-6348-FE-XT	63"L x 48"W	1,000 lbs.
	Full Extension (FE)	20-6348-FE	63"L x 48"W	2,000 lbs.
	FE with Xtreme side Rails	20-6348-FE-XT	63"L x 48"W	2,000 lbs.
Midsize 6' Short Bed	Full Extension (FE)	10-7141-FE	71"L x 41"W	1,000 lbs.
	FE with Xtreme side Rails	10-7141-FE-XT	71"L x 41"W	1,000 lbs.
	Full Extension (FE)	20-7141-FE	71"L x 41"W	2,000 lbs.
	FE with Xtreme side Rails	20-7141-FE-XT	71"L x 41"W	2,000 lbs.
Midsize 5' Short Bed	Full Extension (FE)	10-5941-FE	59"L x 41"W	1,000 lbs.
	FE with Xtreme side Rails	10-5941-FE-XT	59"L x 41"W	1,000 lbs.
	Full Extension (FE)	20-5941-FE	59"L x 41"W	2,000 lbs.
	FE with Xtreme side Rails	20-5941-FE-XT	59"L x 41"W	2,000 lbs.
Midsize 5' Short Bed Frontier	Full Extension (FE)	10-5641-FE	59"L x 41"W	1,000 lbs.
	FE with Xtreme side Rails	10-5641-FE-XT	59"L x 41"W	1,000 lbs.
	Full Extension (FE)	20-5641-FE	59"L x 41"W	2,000 lbs.
	FE with Xtreme side Rails	20-5641-FE-XT	59"L x 41"W	2,000 lbs.
